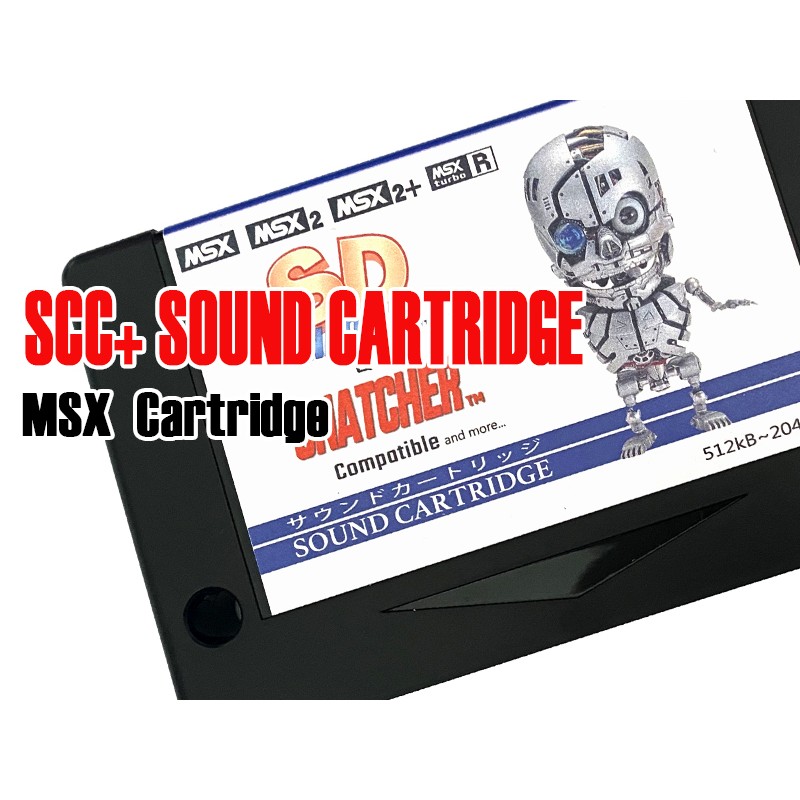

New SCC+ Sound Cartridge View larger

SCC+ Sound Cartridge

SCC+

New product

SCC+ Sound Cartridge is a 100% Compatible SCC Cartridge that give you the SCC sound experience and more

More details

This product is no longer in stock

58,00 €

Data sheet

Compatibility MSX1 - MSX2 - MSX2+ - MSX Turbo-R
Sound SCC

More info

This SCC + cartridge is a technical reproduction of the cartridge originally supplied with the SD-SNATCHER game, but with 2048K of internal RAM instead of the base 64K.

This SCC + cartridge can also be used as a second SCC cartridge for patched Konami games (Nemesis, Nemesis3, Salamander) allowing you to have new sound effects.

The SCC + cartridge is also 100% compatible with Snatcher and SD-Snatcher games.

The additional memory allows you to send compatible ROMs to the cartridge and play them while enjoying the sound capabilities of the SCC + chip.
Using SCROM.COM from MSX-DOS you can send any SCC compatible ROM to the cartridge. (Note the memory of the cartridge is volatile. It is not a Flash cartridge).

- 5 polyphonies channels
- Frequency (12-bit) and amplitude (4-bit) parameters are compatible with the PSG (AY-3-8910) from MSXs.
- 11-bit DAC (D/A) labeled as Konami 051650 (parallel resistors in series)
- The waveform of the chanels 4 and 5 are independent. (They are common on SCC)
- Compatibility mode with the SCC chip. (default)
- Waveform definable on 32 bytes for each channel
- No envelope (automatic attenuation of volume)
- The audio is output through the mixer on the main unit side via the audio input of the cartridge slot.
- MEGARAM 2048K handled with a 8K mapper (same as the Sound Cartridge mapper)
- CPU turbo support
- MSX pause support

Some patched Game that can use 2 SCC cartridge
Nemesis - Gradius enhanced by Victor
Nemesis 3 enhanced by Victor
Salamander voice set add on by WYZ

Reviews

No customer reviews for the moment.

Write a review

SCC+ Sound Cartridge

SCC+ Sound Cartridge

SCC+ Sound Cartridge is a 100% Compatible SCC Cartridge that give you the SCC sound experience and more

Download

SCROM.COM

Send Rom to the SCC+ Cartridge

Download (6.29k)
